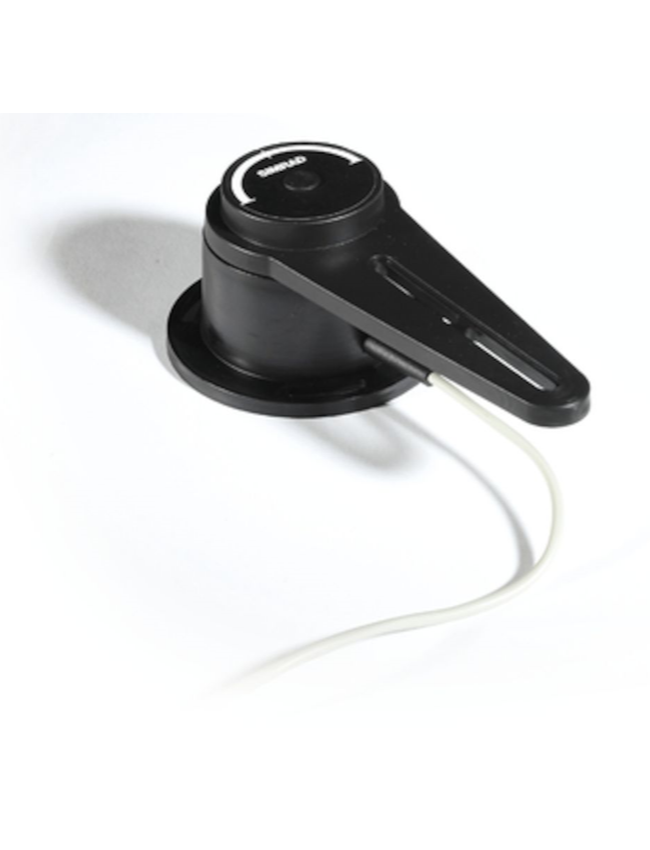

The RF25N is a medium duty rudder feedback unit with a NMEA 2000 interface. The RF25 will attach directly to NMEA2000 systems for straight-forward installation.
Specifications
Physical
Compass Safe - 0,5m (19.7")
Dimensions W x H x D - 99 x 65 x 177mm (3.90 x 2.56 x 6.97")
Mounting Type - Horizontal, Vertical, Upside-down
Weight - 0,5kg (1.1 lbs)
Electrical
Power Consumption - max40mA (from CAN)
Power Consumption - typical40mA (from CAN)
Supply Voltage - 12-16V via CAN
Environment
Operating Temperature Range - -25C to +55C (-13F to +131F)
Storage Temperature Range - -30C to +70C (-22F to +158F)
Waterproofrating - IPx6
Connectivity
N2K PG Ns - 127245
NMEA 2000 Connectivity - 1x CAN Micro-C port, 1 LEN
Other
Warranty Period - 2 years
