Navico (Simrad, Lowrance & B&G) | SKU: 000-10756-001

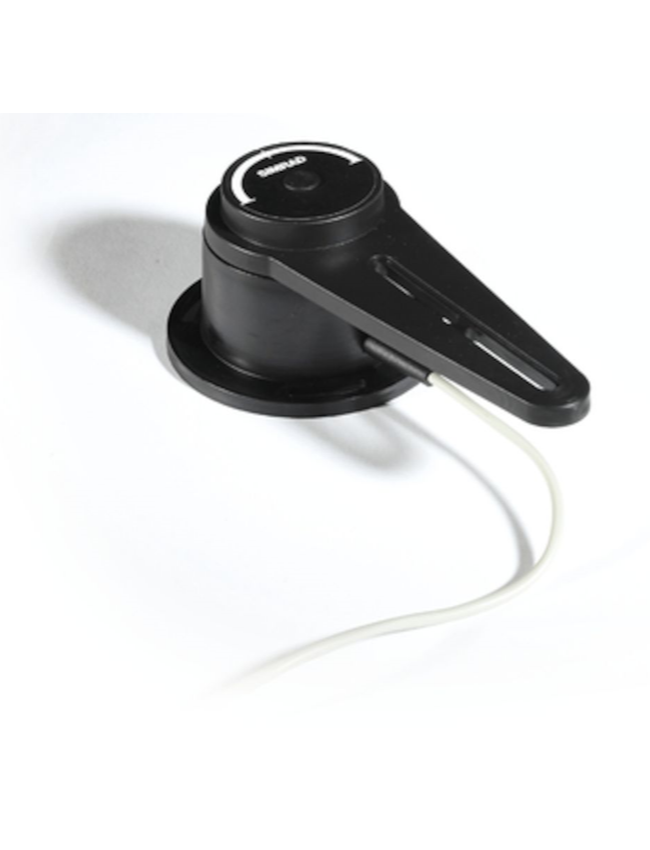

Navico RF25N Rudder Reference Sensor with Micro-C connector

$549.00 CAD

Pickup available at Nanaimo Store

Usually ready in 24 hours

The RF25N is a medium duty rudder feedback unit with a NMEA 2000 interface. The RF25 will attach directly to NMEA2000 systems for straight-forward installation.

Specifications

Physical

Compass Safe - 0,5m (19.7")

Dimensions W x H x D - 99 x 65 x 177mm (3.90 x 2.56 x 6.97")

Mounting Type - Horizontal, Vertical, Upside-down

Weight - 0,5kg (1.1 lbs)

Electrical

Power Consumption - max40mA (from CAN)

Power Consumption - typical40mA (from CAN)

Supply Voltage - 12-16V via CAN

Environment

Operating Temperature Range - -25C to +55C (-13F to +131F)

Storage Temperature Range - -30C to +70C (-22F to +158F)

Waterproofrating - IPx6

Connectivity

N2K PG Ns - 127245

NMEA 2000 Connectivity - 1x CAN Micro-C port, 1 LEN

Other

Warranty Period - 2 years
