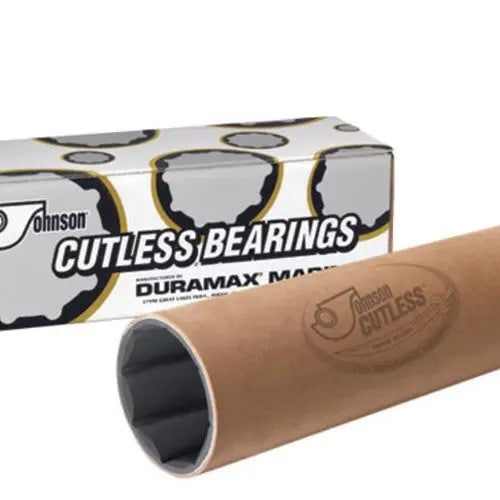

Johnson Duramax Cutless Naval Brass Sleeve Bearings

$13699 CAD
Diameters are precision fitted to the shaft size with correct clearance for efficient water lubrication.
Size

  • Brand
    Johnson
  • SKU:
    JON-ABLE
  • Barcode:
    910000072931

Description

Diameters are precision fitted to the shaft size with correct clearance for efficient water lubrication.
These Naval Brass Sleeve Bearings adapt equally well to strut and stern tube mounts, and often used effectively as rudder-stock and pintle bushings.
  • Diameters are precision fitted to the shaft size with correct clearance for efficient water lubrication.
  • Thin shelled units are available for struts of small craft.
  • For shaft sizes: 3/4" to 6-1/2" (19.05mm - 165.10mm)
Cutless Bearing Specs Johnson Cutless Catalog
johnson cutless bearing
Johnson

Johnson Duramax Cutless Naval Brass Sleeve Bearings

From $4999 CAD $16499
Diameters are precision fitted to the shaft size with correct clearance for efficient water lubrication.
These Naval Brass Sleeve Bearings adapt equally well to strut and stern tube mounts, and often used effectively as rudder-stock and pintle bushings. Cutless Bearing Specs Johnson Cutless Catalog

Size

  • ABLE - 3/4 x 1-1/4 x 3
  • ACID - 7/8 x 1-1/4 x 3-1/2
  • APEX - 7/8 x 1-3/8 x 3-1/2
  • ATOM - 7/8 x 1-1/2 x 3-1/2
  • BACK - 1 x 1-1/4 x 4
  • BAIT - 1 x 1-3/8 x 4
  • BALE - 1 x 1-1/2 x 4
  • BAND - 1 x 1-5/8 x 4
  • BASE - 1 x 2 x 4
  • BEAM - 1-1/8 x 1-1/2 x 4-1/2
  • BELT - 1-1/8 x 1-5/8 x 4-1/2
  • BEND - 1-1/8 x 1-3/4 x 4-1/2
  • BIND - 1-1/4 x 1-1/2 x 5
  • BIRD - 1-1/4 x 1-3/4 x 5
  • BITE - 1-1/4 x 2 x 5
  • BLOW - 1-1/4 x 2-1/8 x 5
  • BOAT - 1-3/8 x 1-7/8 x 5-1/2
  • BOLD - 1-3/8 x 2 x 5-1/2
  • BOND - 1-3/8 x 1-7/8 x 5-1/2
  • BOSS - 1-1/2 x 2 x 6
  • BRAD - 1-1/2 x 2-3/8 x 6
  • BROW - 1-3/4 x 2-3/8 x 7
  • BUCK - 1-3/4 x 2-5/8 x 7
  • BULB - 1-7/8 x 2-5/8 x 7-1/2
  • BUST - 1-7/8 x 2-15/16 x 7-1/2
  • CALL - 2 x 2-5/8 x 8
  • CAPE - 2-1/8 x 3-1/8 x 8-1/2
  • CARE - 2-1/4 x 2-15/16 x 9
  • EARN - 4 x 5 x 16
