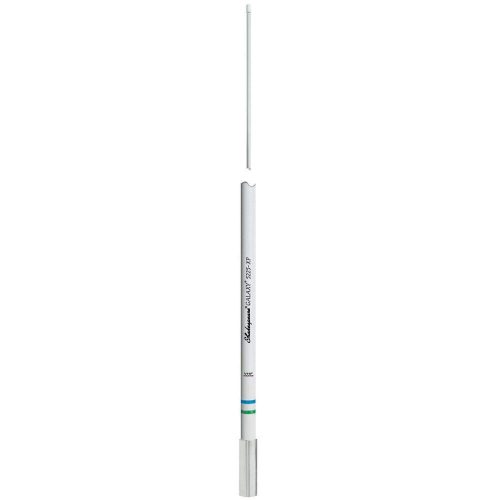

Shakespeare 5225-XT Galaxy VHF Marine Band Antenna

Shakespeare's best - maximizes range and quality in a great looking antenna. The 5225-XT is Shakespeare's Galaxy® Style 5225 in a stronger, stiffer radome. It's extra tough for use on hard tops, T-tops, radar arches, or wherever its extra resistance to high winds and high speeds is welcome.

• Brass and copper elements for maximum range and efficiency
• Stainless steel ferrule with standard 1"-14 thread
• 20ft RG-8/X low-loss cable plus a PL-259 connector
• Suggested mount: Shakespeare Style 4187 or 5187 (each sold separately)
• One section

Galaxy 5225-XT Specifications
Band:	VHF Marine Band
Antenna Gain:	6dB
Max. Input Power:	100 watts
SWR:	nominally 1.5:1 at 156.8 MHz
Bandwidth:	3 MHz within 2.0:1 VSWR
Ferrule:	Stainless steel
Coax Supplied:	20 ft of RG-8/X
Connector Supplied:	PL-259, not installed
Color/finish:	Galaxy White
Polarity:	Vertical
Impedance:	50 Ohms
DC Ground:	DC Grounded - The antenna will read shorted on continuity test.
